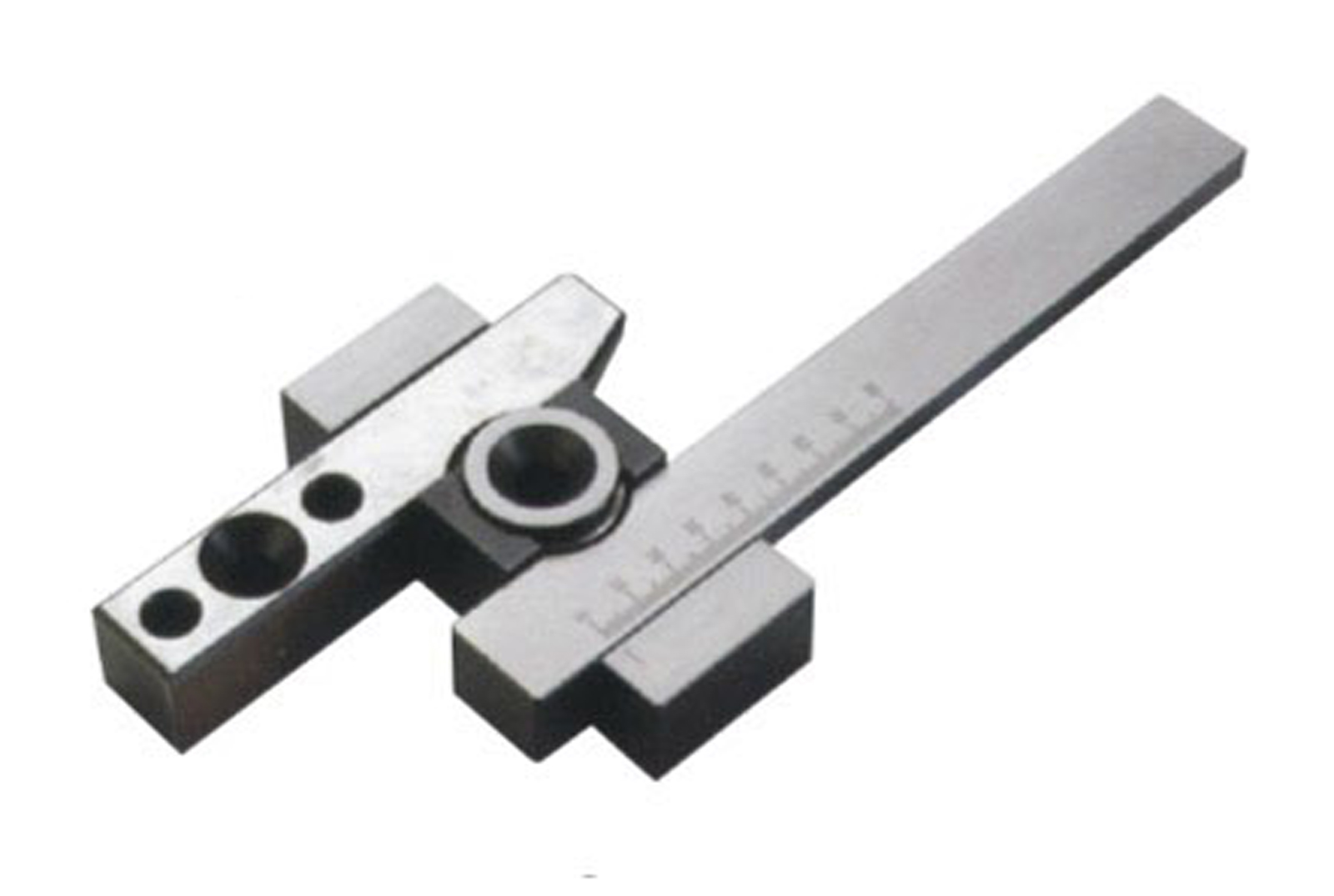

獨特的設計與精確的刻度尺保證了在第一次開模具有很高的精度。
比傳統模式更節約成本, 優化模具結構。

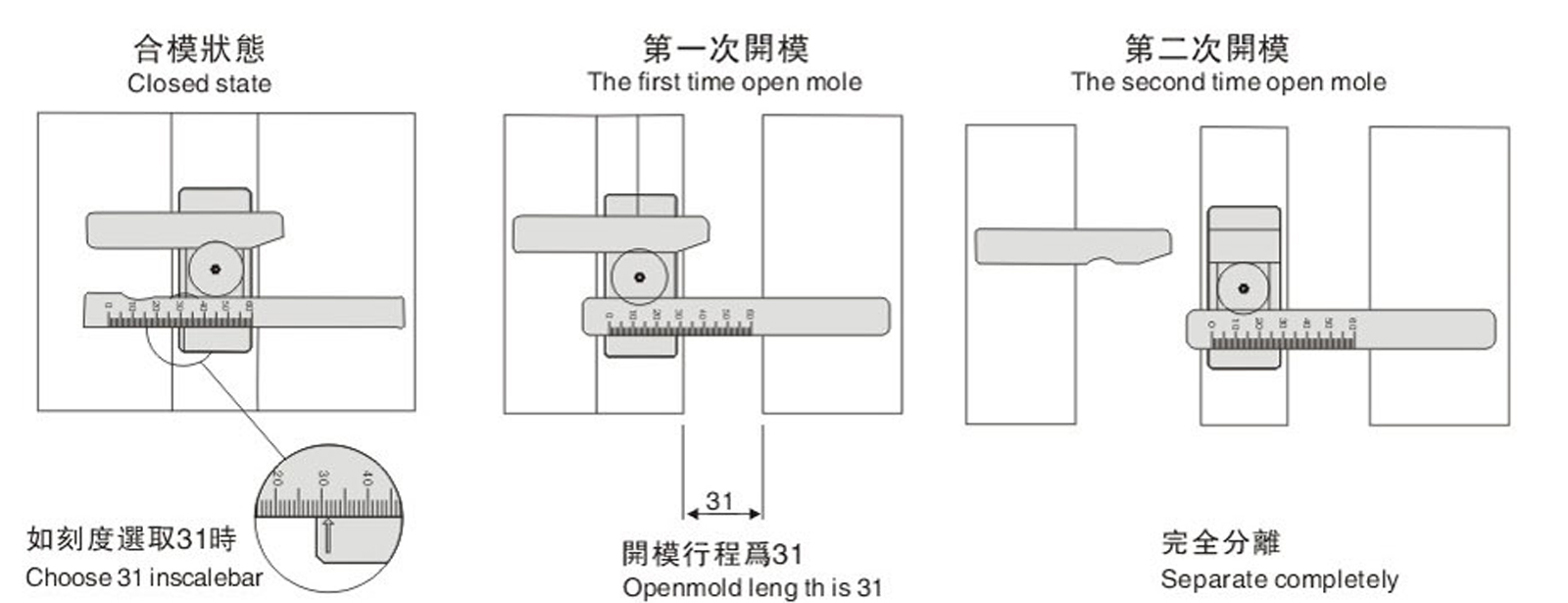

More accurate first plate opening compared to other conventional systems .
Scale lever indicates opening of the first plate.
Reduces costs compared to conventional mechanisms.
| 材質 | 硬度 |
| 1.0503 | 55°±3°HRC |

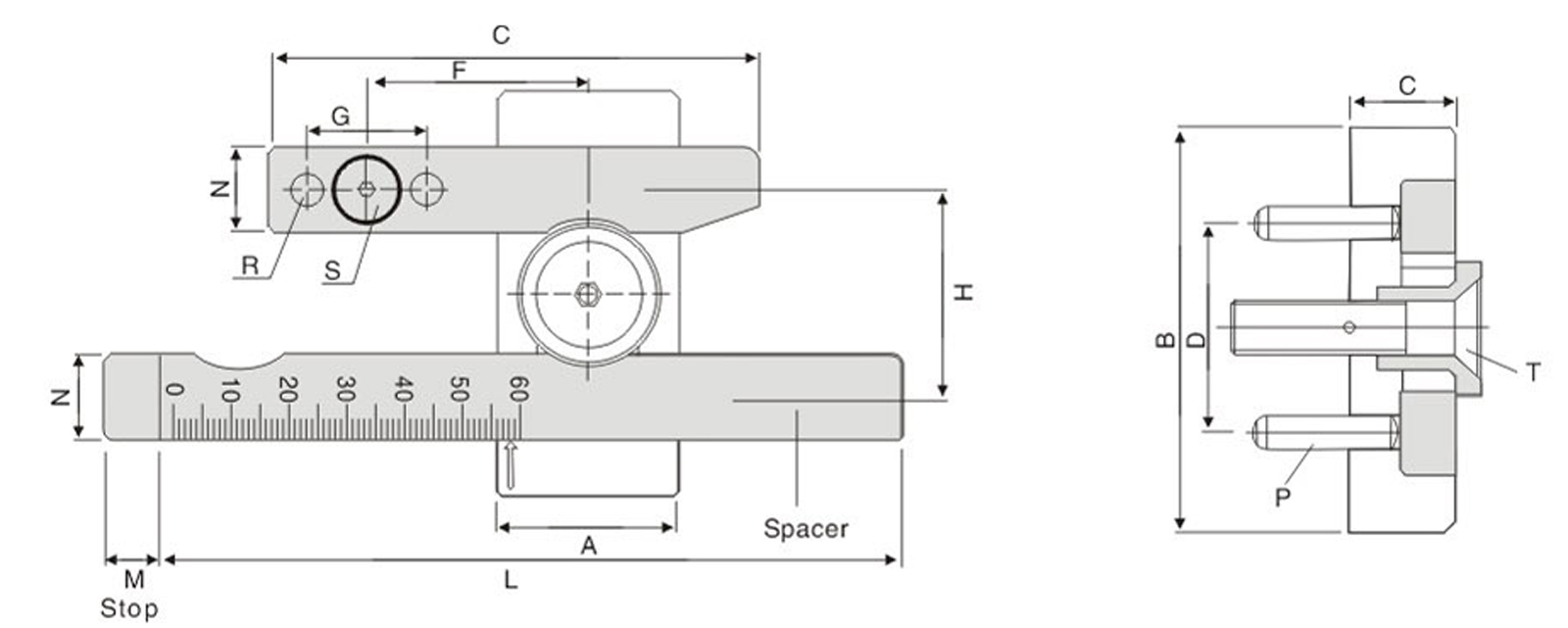

| Type | 尺寸Size | sca | ||||||||||||||
| A | B | C | D | E | F | G | H | L | M | N | P(x2) | R(x4) | S(x2) | T | ||
| GGS.226616 | 22 | 66 | 16 | 38 | 75 | 30 | 25 | 32 | 105 | 10 | 15 | ?6x20 | ?6x30 | M6x30 | M6x35 | 40 |
| GGS.368619 | 36 | 86 | 19 | 46 | 102 | 43 | 32 | 42.7 | 153 | 12 | 20 | ?8x24 | ?8x36 | M8x36 | M8x40 | 60 |
| GGS.421024 | 42 | 106 | 24 | 56 | 124 | 51 | 40 | 50.2 | 190 | 15 | 24.5 | ?10x30 | ?10x40 | M10x40 | M10x45 | 80 |
訂購：119-鎖?？? GGS
