 | D≤12 | D>12 | |
| 0 -0.020 | 0 -0.030 | ||
 | d=6 | 8≤d≤10 | 12≤d≤16 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

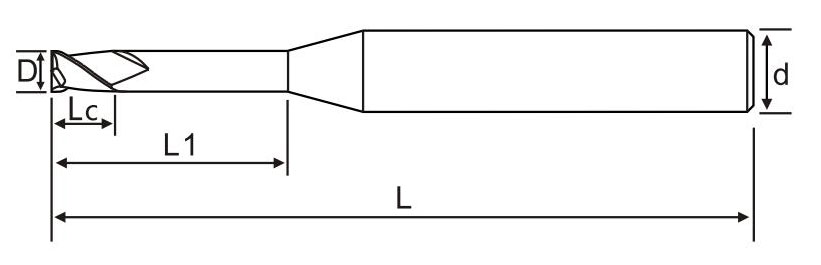

| 商品編號 Product number | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 有效長(L1) Effective long | 柄徑(d) Shank diameter | 全長(L) Overall length | 刃數 Flute |
| MH5802ELN10045012 | 1.0 | 1.50 | 12 | 4 | 50 | 2 |
| MH5802ELN10045016 | 1.0 | 1.50 | 16 | 4 | 50 | 2 |
| MH5802ELN1504508 | 1.5 | 2.50 | 8 | 4 | 50 | 2 |
| MH5802ELN15045010 | 1.5 | 2.50 | 10 | 4 | 50 | 2 |
| MH5802ELN15045012 | 1.5 | 2.50 | 12 | 4 | 50 | 2 |
| MH5802ELN15045016 | 1.5 | 2.50 | 16 | 4 | 50 | 2 |
| MH5802ELN15045018 | 1.5 | 2.50 | 18 | 4 | 50 | 2 |
| MH5802ELN2004508 | 2.0 | 4.00 | 8 | 4 | 50 | 2 |
| MH5802ELN20045010 | 2.0 | 4.00 | 10 | 4 | 50 | 2 |
| MH5802ELN20045012 | 2.0 | 4.00 | 12 | 4 | 50 | 2 |
| MH5802ELN20045016 | 2.0 | 4.00 | 16 | 4 | 50 | 2 |
| MH5802ELN20045018 | 2.0 | 4.00 | 18 | 4 | 50 | 2 |
| MH5802ELN20045020 | 2.0 | 4.00 | 20 | 4 | 50 | 2 |

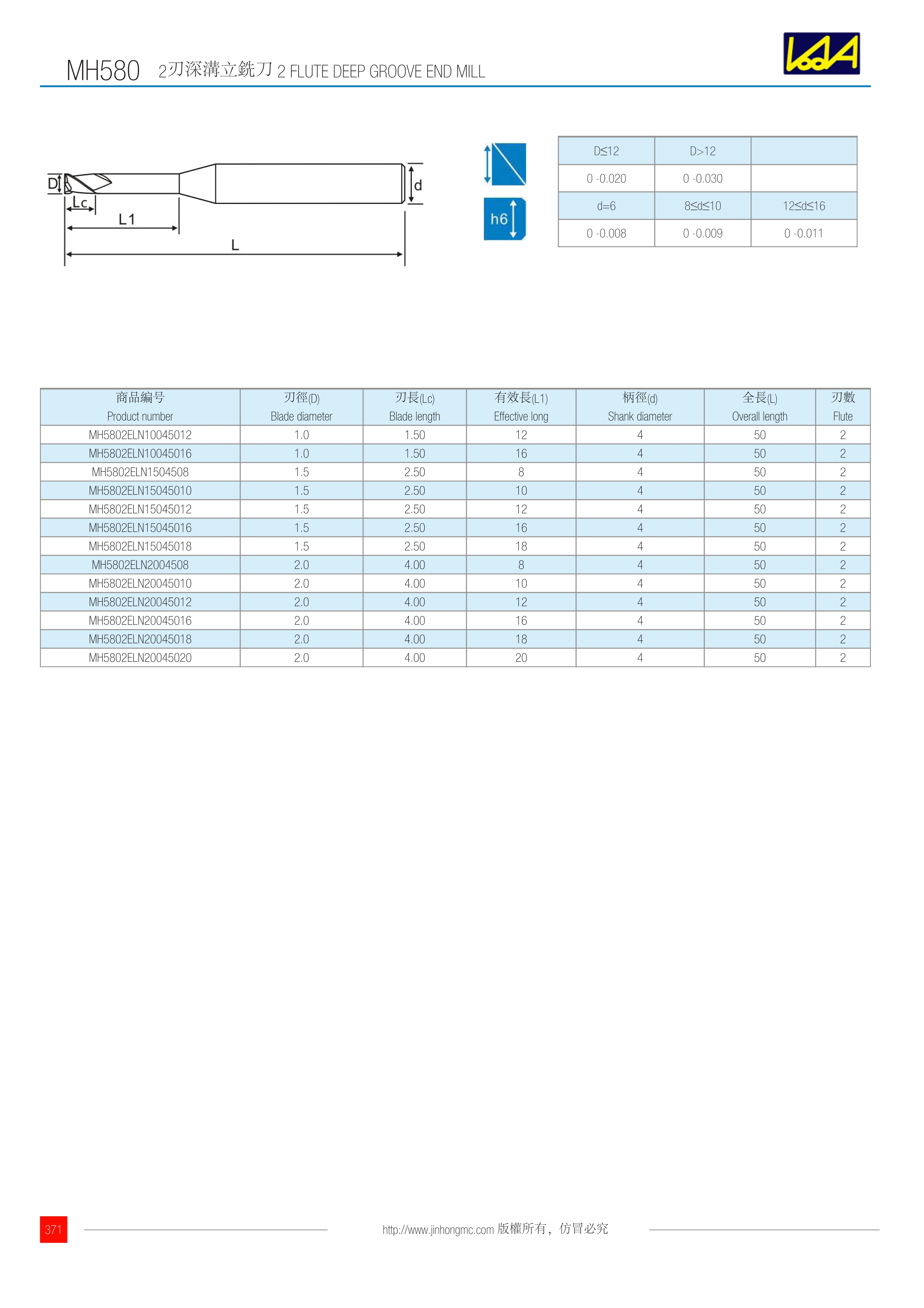

訂購：mh580-9 2刃深溝立銑刀
